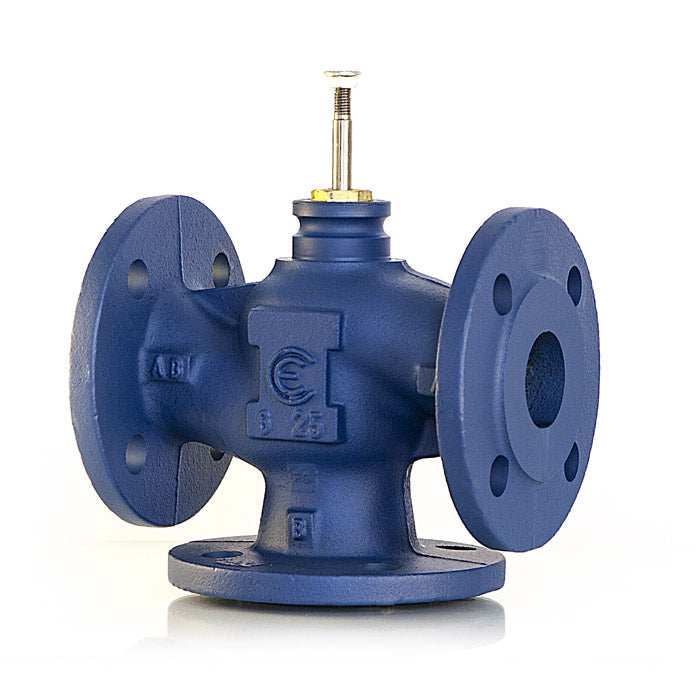

3FGB25 (replaces VMB1625)

Three-way globe valve, DN25 PN16 KVS = 10, for water or glycol-water mixture not exceeding 50%, cast iron body with flanged connections, cast iron seat, forged brass plug, 9 mm diameter stainless steel stem, EPDM O-Ring stem seals, can be assembled with MVE and MVH series actuators, equal percentage flow characteristic for the straight-through port, linear flow characteristic for the angle port, leakage rate for straight-through port < 0.03% of KVS, leakage rate for angle port < 2.00% of KVS, fluid temperature limits -10 / +150 °C, maximum applicable differential pressure: see tables in the technical bulletin with reference to the type of actuator applied.
