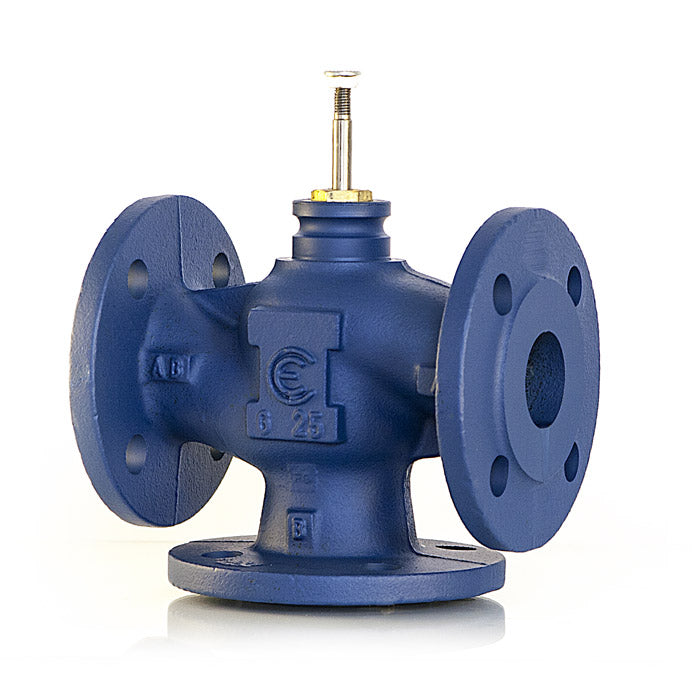

3FGB150 (replaces VMB16150)

Three-way globe valve, DN150 PN16 KVS = 300, for water or glycol water with a mixture not exceeding 50%, cast iron body with flanged connections, cast iron seat, forged brass plug, 9 mm diameter stainless steel stem, stem seals with EPDM O-rings, can be assembled with MVE and MVH series actuators, direct port equal-percentage control characteristic, angle port linear control characteristic, direct port leakage < 0.03% of KVS, angle port leakage < 2.00% of KVS, fluid temperature limits -10 / +150 °C, maximum applicable differential pressure: see tables in the technical bulletin with reference to the type of actuator applied.
