3FGB125L

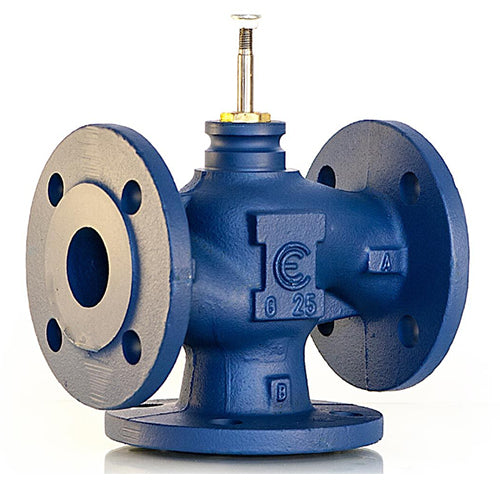

Perfectly sealed three-way globe valve, DN125 PN16 KVS = 200, for water or glycol water with a mixture not exceeding 50%, cast iron body with flanged connections, cast iron seat, forged brass plug, 9 mm diameter stainless steel stem, stem seals with EPDM O-rings, can be assembled with MVE and MVH series actuators, equal percentage direct port control characteristic, linear angled port control characteristic, direct port leakage = perfectly sealed, angled port leakage = perfectly sealed, fluid temperature limits -10 / +150 ° C, maximum applicable differential pressure: see tables in the technical bulletin with reference to the type of actuator applied.
