Item code
2TGA32B
On backorder
Description

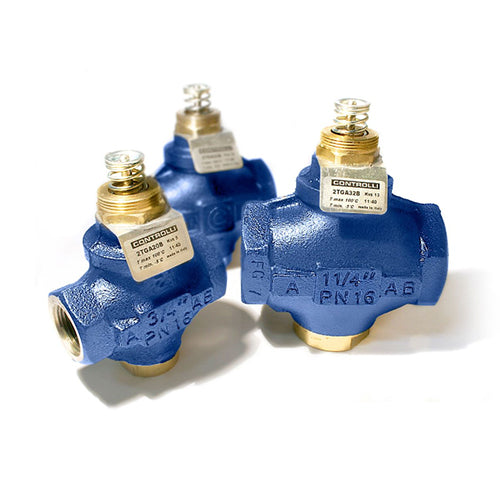

Two-way balanced globe valve, DN32 PN16 KVS = 13, for water or glycolated water with up to 60% mixture, cast iron body EN1561 GJL-250 with internal threaded connections, AISI303 stainless steel plug, AISI303 stainless steel stem with spring at the top, equal percentage control characteristic on port A-AB, leakage rate on port A-AB < 0.03% of Kvs, stroke 8.5 mm, fluid temperature limits -5... +100 ° C. Maximum allowed differential pressure = 100 KPa. Can be motorized with MVT203S, MVT403S, MVT503S and MVC503R CONTROLLI series actuators.
Technical specifications
PROPERTY
VALUE
Connections
Filettato interno
Ways
2 vie
Operating temperature
-10…+120 °C
Weight
1.9 kg
