Item code
2FGA15R3
On backorder
Description

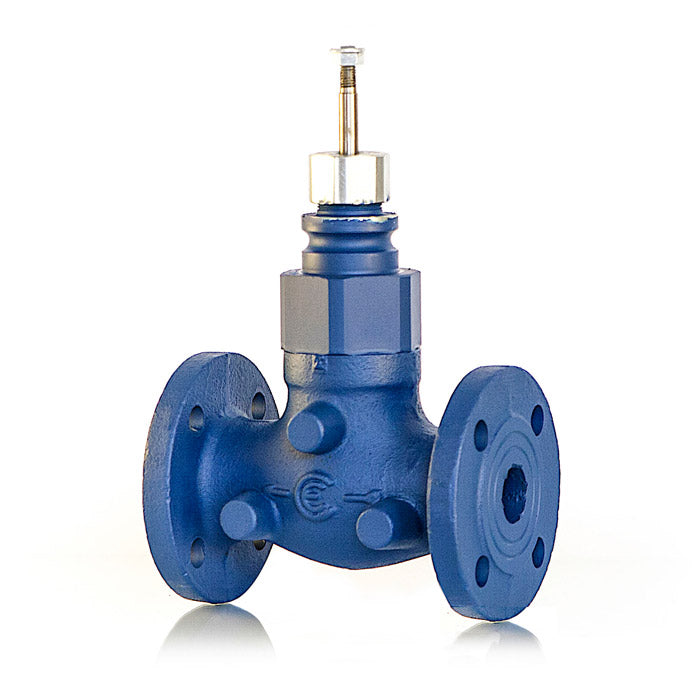

Two-way globe valve, single seat, DN15 PN16 KVS = 2.5, for water, superheated water or steam, cast iron body with flanged connections, stainless steel internal parts, 9 mm diameter stainless steel stem, Teflon ring stem seals, can be assembled with MVE and MVH series actuators, equal percentage control characteristic, leakage rate < 0.02% of KVS, fluid temperature limits -10 / +200 °C, maximum applicable differential pressure: see tables in the technical bulletin with reference to the type of actuator applied.
Technical specifications
PROPERTY
VALUE
Connections
Flangiato
Ways
2 vie
Operating temperature
-10…+350 °C
Weight
3.5 kg
